Productive all-around machine

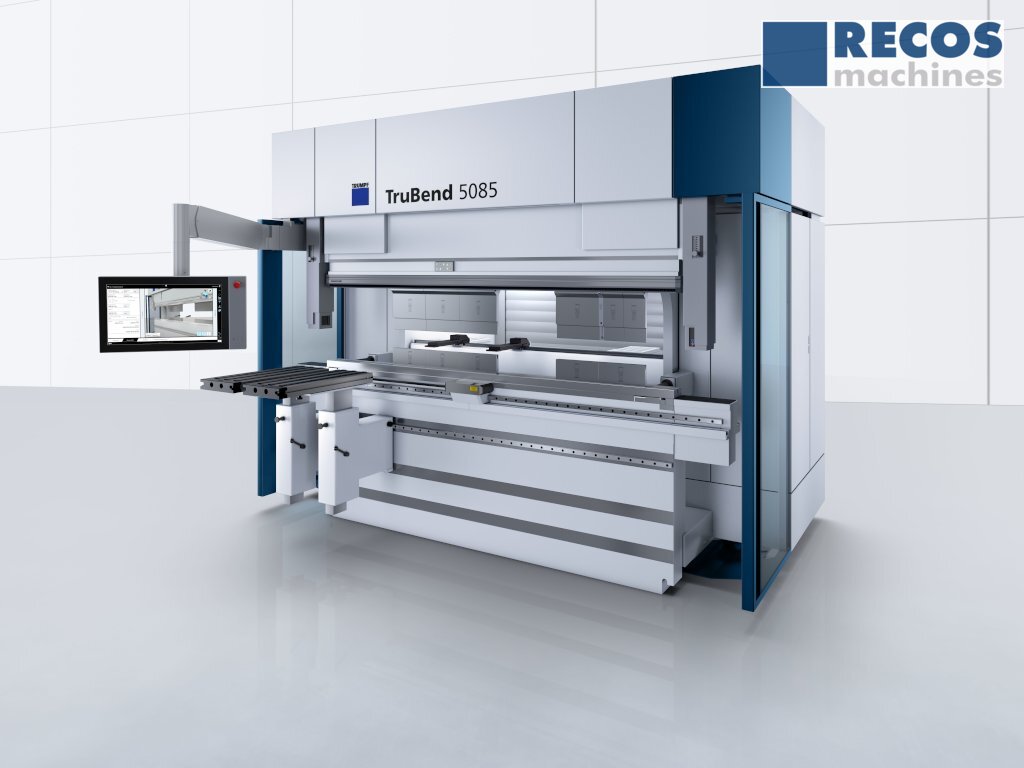

The TruBend 5085 TRUMPF's most successful bending machine worldwide. This means from programming, to setup, to bending, production productivity will be unmatched. Innovative features such as the lower tool displacement and the 6-axis backgauge provide you with complete production freedom. The operator's work is made easier by numerous innovations such as the control concept, which is a revolution in its simplicity and intuitive use, as well as new solutions in the field of ergonomics, such as the MagicShoe.

Technical Data

Characteristics
Press force : 850 kN
Bending length : 2210 mm
Width between columns : 1750 mm
Usable open height : 385 mm
Usable open height for extended version (option) : 615 mm
Throat depth : 420 mm
User interface : Touchpoint TruBend
Maximum speed Y axis, operation (option) : 25 mm/s
Dimensions
Length : 3020 mm
Width : 1800 mm
Height : 2840 mm
Weight : 8300 kg

Automation

ToolMaster

With the ToolMaster automatic tool changer, you can set up the TruBend 5085 automatically for each new program. This represents a priceless benefit, particularly for small lot sizes. You thus save a lot of time and effort.

TruBend 5085
